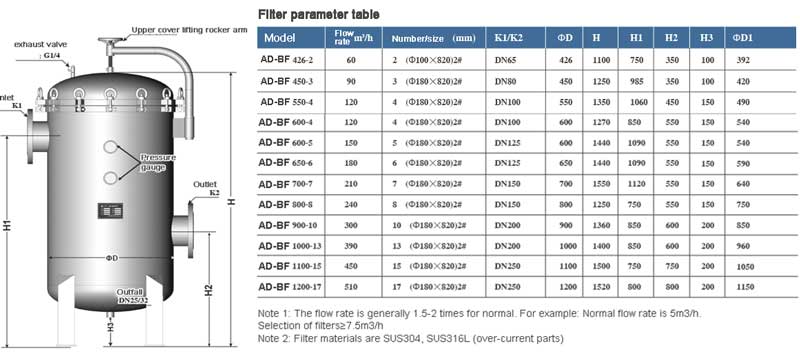

Multi-bags filter housing is suitable for large flow filtration. From 2 bags to 24 bags, the specifications are complete, and quick-open design is available. The filter bag is convenient to disassemble and replace. It is suitable for occasions where the filter bag is expected to be used for a long time.

Filtration Rating:0.5, 1 5, 10, 20, 50, 100, 200 to 500µ

Filtration Efficiency:95%

Design Pressure:Up to 300Psi

Design Temperature:20℃ to 150℃

Size/Dimension:Standard or ( As per requirement).

Seal Type:O-ring or flat gasket.

Seal Material:Silicon,NBR, EPDM, Viton, PTFE.

Surface treatment Mirror polishing or electrolytic polishing or Paint.

Note: Our product supports customization,If you need a customized design service, consult Lvda.

Features

150 PSI – For a wide variety of filtration applications.

304 stainless steel for high corrosion resistance.

Unique 3-point hold down ensures a high-quality seal between each filter bag and housing body.

A spring assisted lifting mechanism balances for quick and easy opening

Positive O-ring sealing offers easy and safe operation.

Low profile design with side inlet and tangential outlet provides easy and full drainage and reduces housing height to make filter bag change-outs easier
